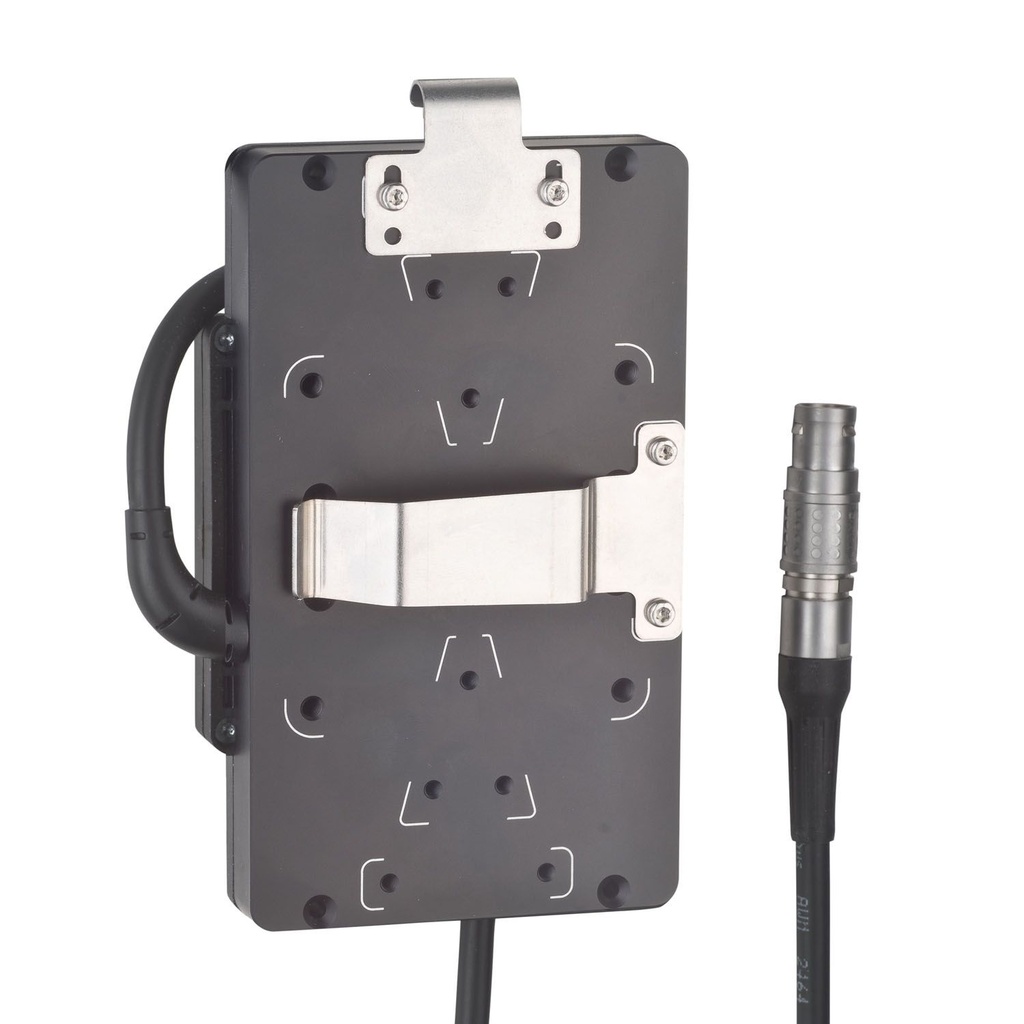

Bebob BMM24- Power-Beltclip B-Mount Belt Clip 24V
B-Mount Belt Clip 24V
Lemo plug 8pin - 1m cable length incl. Connector bracket
B-Mount 24V camera side connector plate (28.8V unreg / max 20A)
Optimal for B90cine (or other B-Mount compatible batteries)
Robust Design with 380g weight
|
Model |
B-Mount Beltclip 24V |
|
Material |
Aluminium/Metal/Plastic |
|
Connection (Camera) |
Lemo Plug 8pin - 1m cable length |
|
Mount (Battery) |
B-Mount 28.8V (unreg 24V) |
|
Voltage |
20.5V to 33.6V |
|
Max Load |
max 20.0A - depends on battery |
|
Features |
Integrated threaded holes for V-mount prism Wedge Plate 8*M4 (Arri-Rail Mount) Spigot
3/8“ 16mm (for Superclamp) |
|
Specials |
Connector bracket on Belt Clip |
|
Weight |
380g |
|
Dimensions (B x H x T) |
85 x 144 x 18/38mm (min/max) |
|
Warranty |
2 Years |
